by m_bergman, publishedJan 23, 2014

Summary

PACK 2 AVAILABLE: http://www.thingiverse.com/thing:310476
PACK 3 AVAILABLE: http://www.thingiverse.com/thing:539511
PACK 4 AVAILABLE: http://www.thingiverse.com/thing:1138822

1:200 WWI Tanks: http://www.thingiverse.com/thing:440171

1-100 Tanks:http://www.thingiverse.com/thing:769137

Karl Geraet & Munitionsschlepper now added.

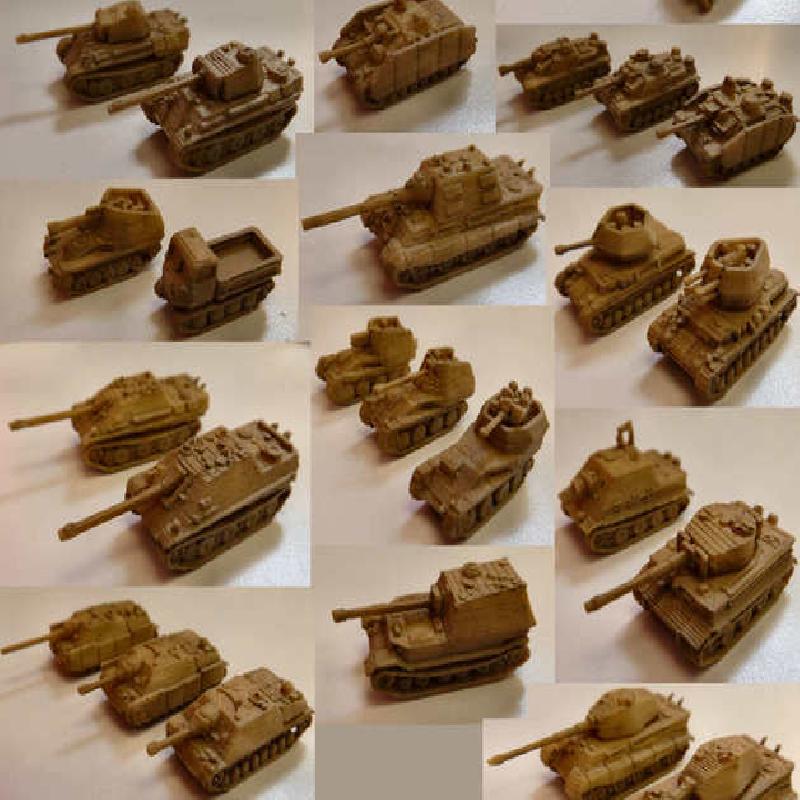

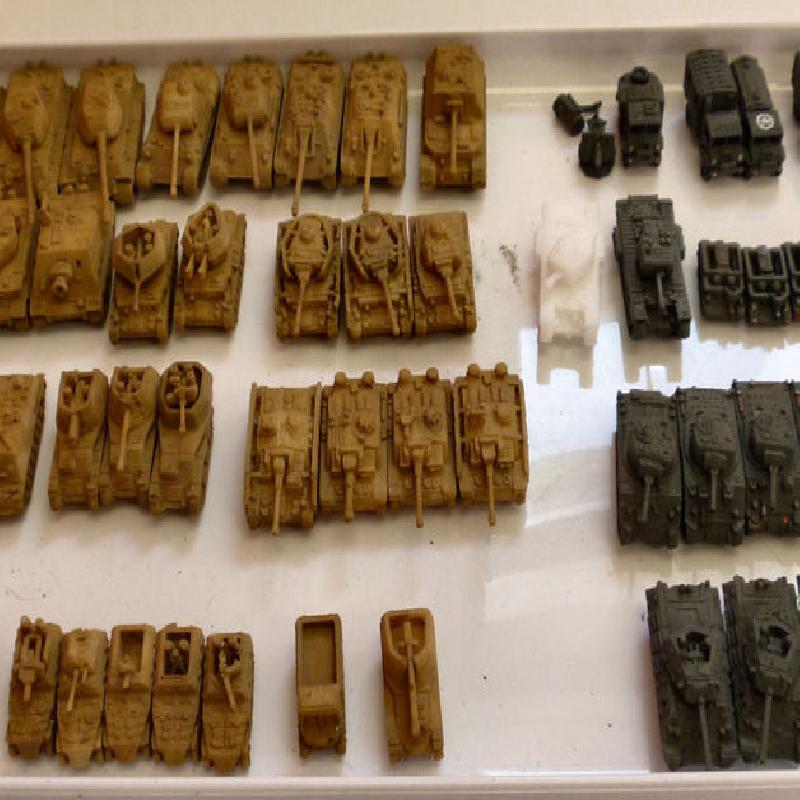

1:200 World War 2 1944-45 wargaming set.
(Will eventually cover US,Commonwealth, German & Russian forces.)
Something to draw in my lunch breaks.
Designed to be printed on UP! Plus in ABS.
Support is essential.
Two versions of every vehicle included - simple version has filled-in trackwork and other simplifications to make printing easier. Non-simple versions for experts only, much careful support clearing required.

Instructions

Drawn in Solidworks 2012 & 2013
Designed to be printed on UP! Plus in ABS.
Support is essential.
Settings used: 0.15mm layers, vent open, loose fill, 4 layer surface, supports 3mm^2 x 80 degrees

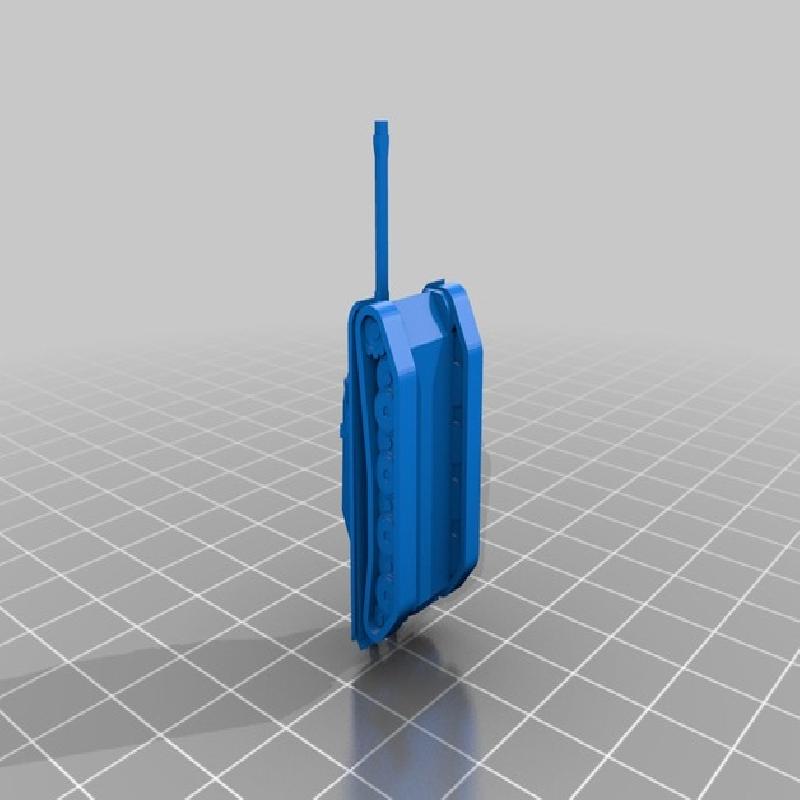

Two versions of every vehicle hull are included: "-simple" version has filled-in trackwork and other simplifications to make printing easier. Non-simple versions really are for experts only, as much careful support clearing is required and tracks are delicate to print.
25pdr and Pzkpfw IV-schurzen-rail don't have -simple versions, because they aren't.
Parasolid versions of all parts included in a seperate file.
Pack 1:
US:
M4A3
M4A3 late
M10 GMC early
M10 GMC mid
M10 GMC late
M36 GMC

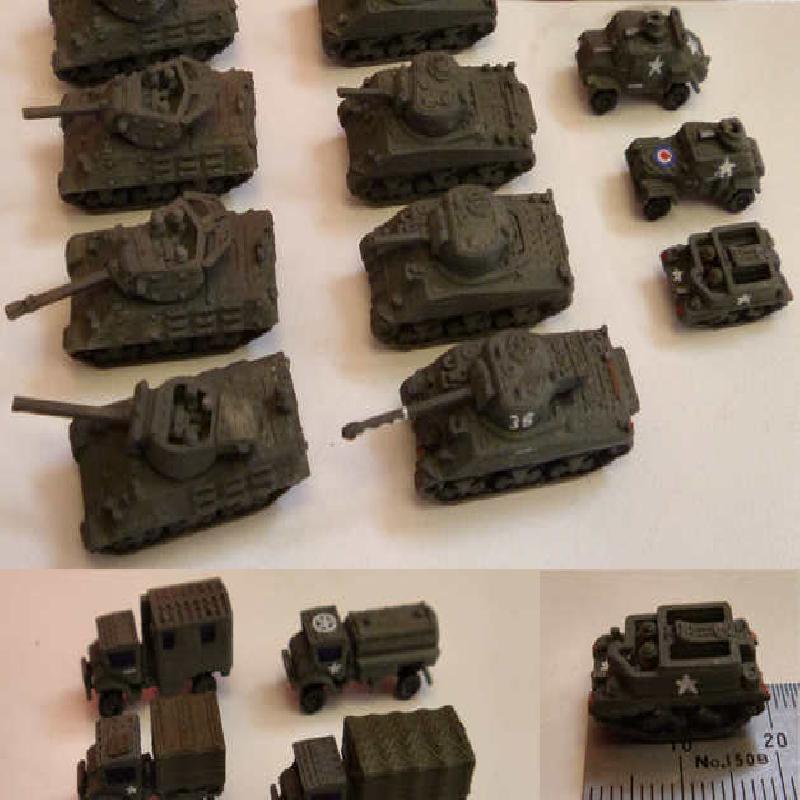

Commonwealth:
25 Pdr & limber (goes with CMP FAT)
Universal Carrier
Churchill IV
Churchill V
CMP 15cwt
CMP 15cwt covered
CMP 1T
CMP 1T covered
CMP FAT (Field Artillery Tractor)
CMP tanker
CMP Radio truck
Light Recon. Car Humber Mk III
Otter
Sherman I (3 piece hull front)
Sherman I (1 piece hull front)
Sherman V
Sherman VC Firefly
Achilles IIc (Use M10 hull)
Wolverine ( Use M10 GMC)
Germany:
Elefant
Wespe
Marder III
Flakpanzer 38t
Grille ausf M
RSO
Stug IIIg mid
Stug IIIg mid schurzen
Stug IIIg late
Stug IIIg late schurzen
Stug IV
Stug IV schurtzen
Stuh 42g
Pz IVf (use g hull)
Pz IVg
Pz IVg +schurzen (turret only, turret+rails, or full, depending on hull chosen.)
Pz IV H
Pz IV H +schurzen (turret only, turret+rails, or full, depending on hull chosen.)
Pz IV J early
Pz IV J early +schurzen (turret only, turret+rails, or full, depending on hull chosen.)
Wirbelwind (use Pz IVh hull)
Ostwind
Jagdpanzer IV
Jagdpanzer IV +schurzen
Jagdpanzer IV L70
Jagdpanzer IV L70 +schurzen
Panther A mid
Panther A late
Panther G
Jagdpanther early
Jagdpanther late
Tiger I
Sturmmorser Tiger
Tiger II (Porsche turret)
Tiger II (Henschel turret)
Jagdtiger
Sdkfz 250 ausfB -1
Sdkfz 250 ausfB -7
Sdkfz 250 ausfB -8
Sdkfz 250 ausfB -9
Sdkfz 250 ausfB -10
Sdkfz 251 ausfD -1
Sdkfz 251 ausfD -2
Sdkfz 251 ausfD -9
Sdkfz 251 ausfD -10
Sdkfz 251 ausfD -22

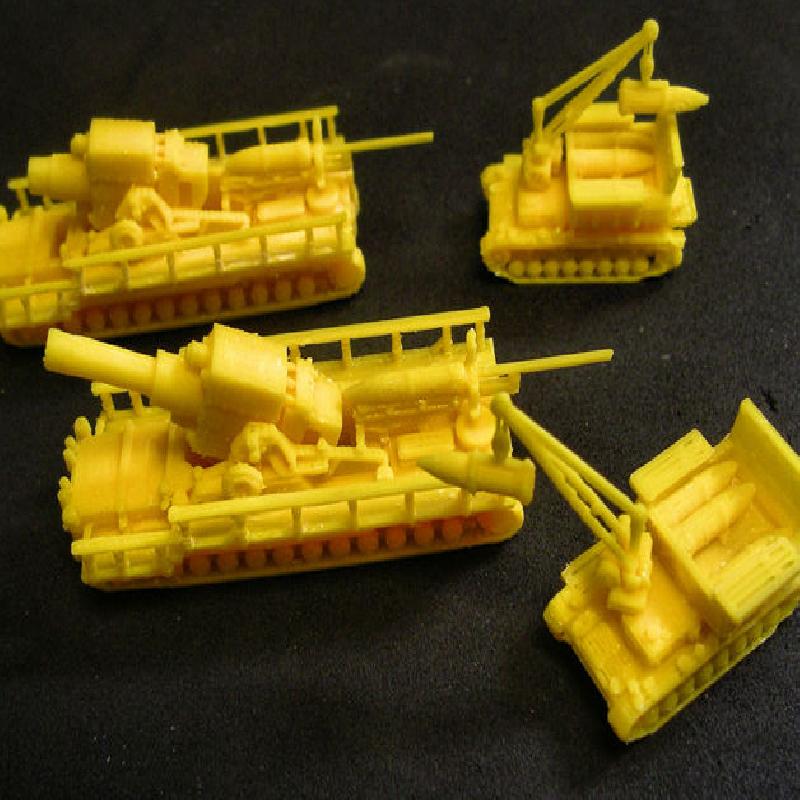

Karl Geraet (nr iii-vii) & Munitionsschlepper (60cm & 54cm versions)  NOTE: complicated model - NO simple provided.
