Hi all,

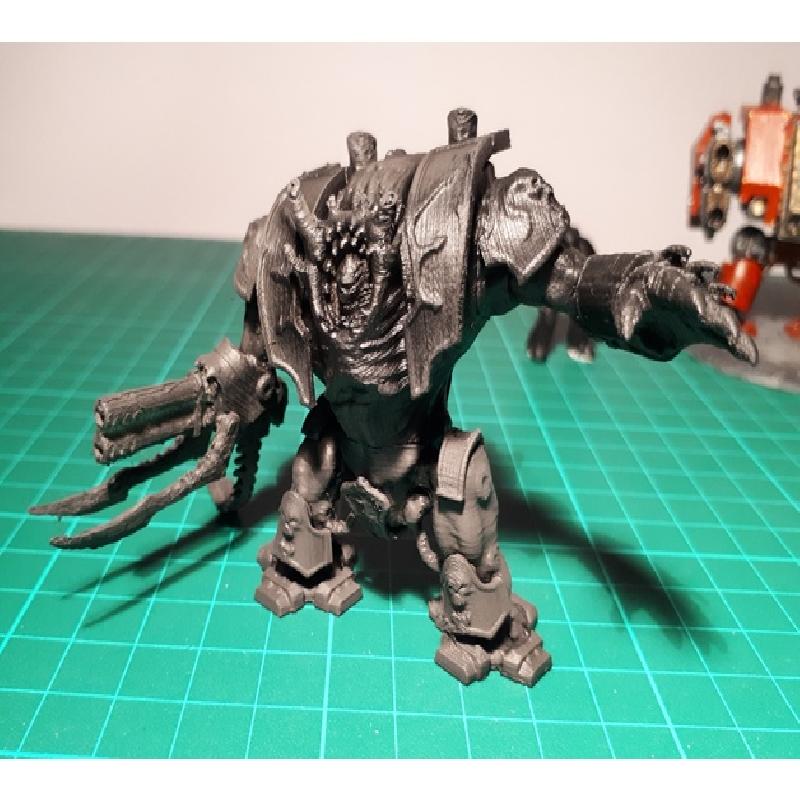

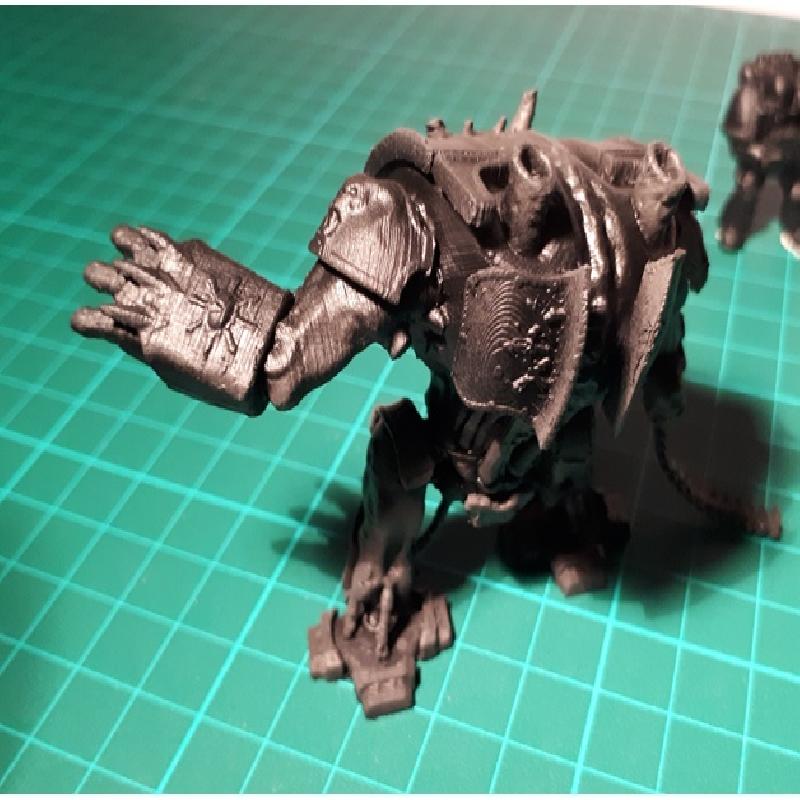

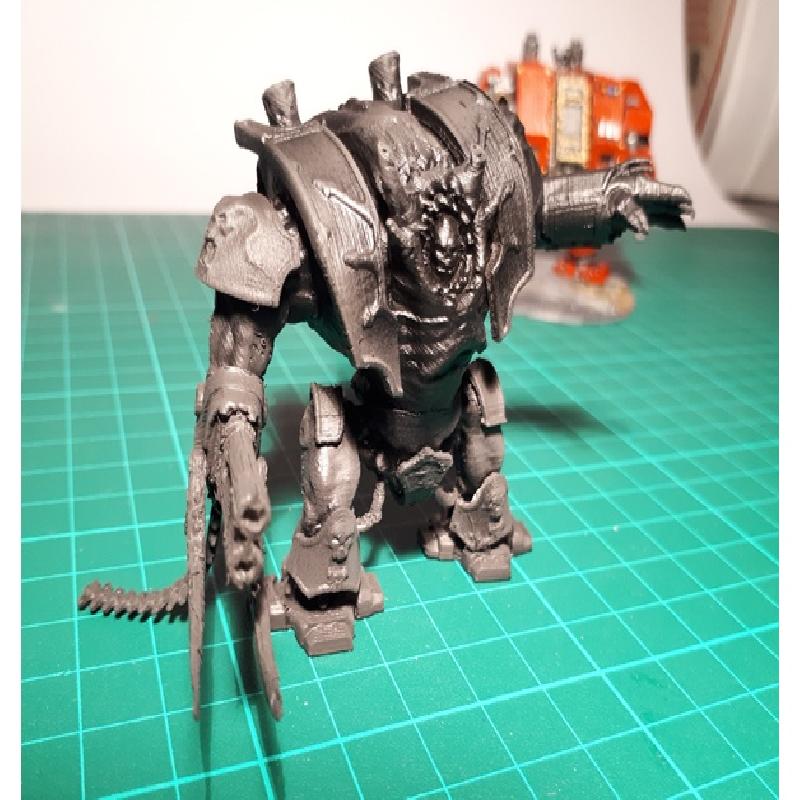

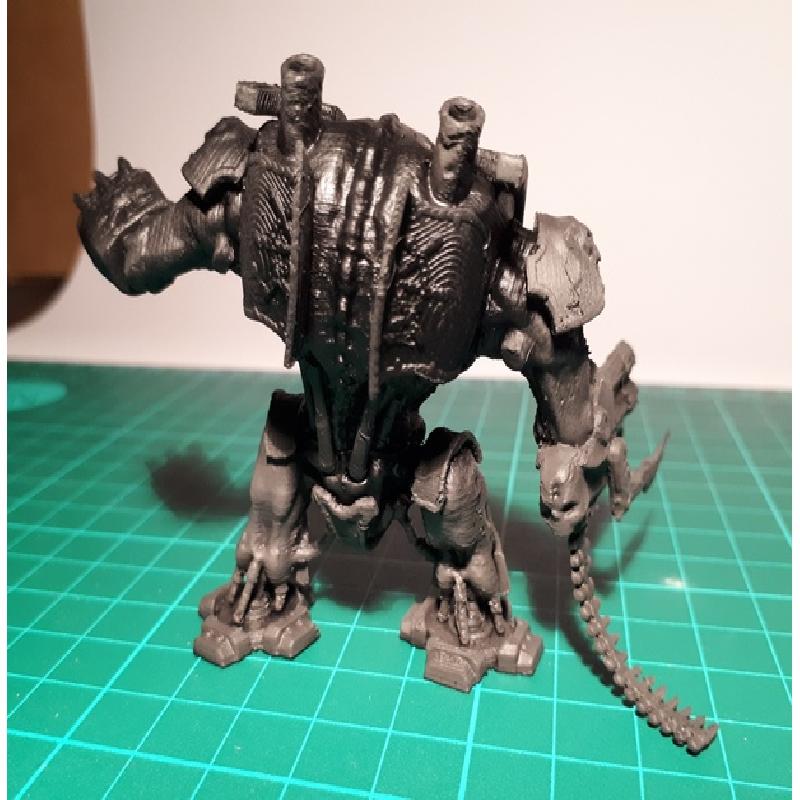

Here is my printed Infernal brute for 28mm 40k. Mostly inspired by GW Hellbrute.
This is not my design, I made it 3D printable in multiple parts, and added details that were not modeled on the original mesh I found.
I gave him an aggressive pose, and changed his feet to match Garin's dreadnought.
Parts list :

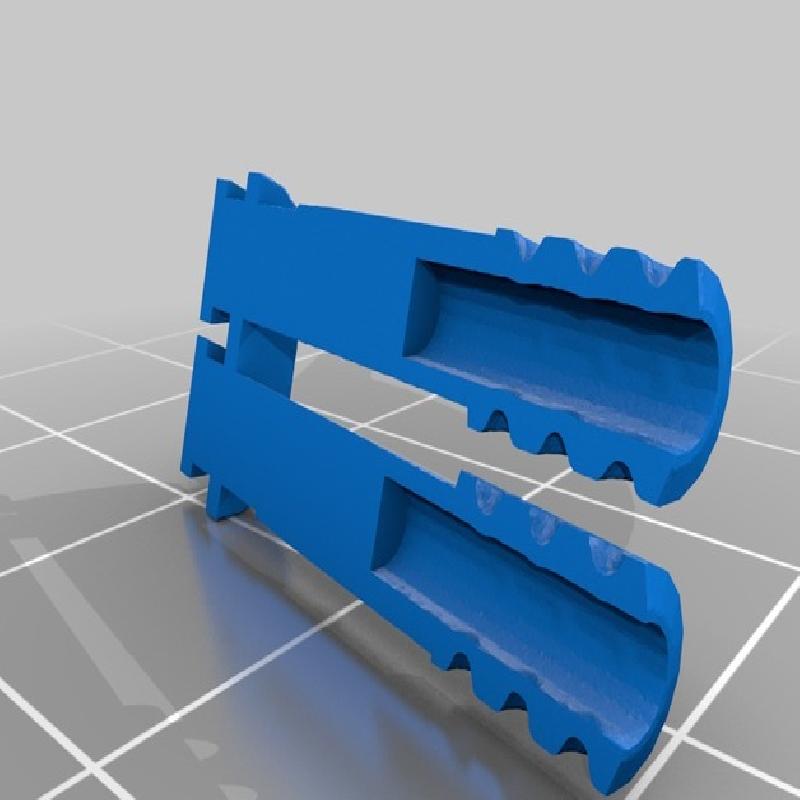

HB_cannon (print x2)

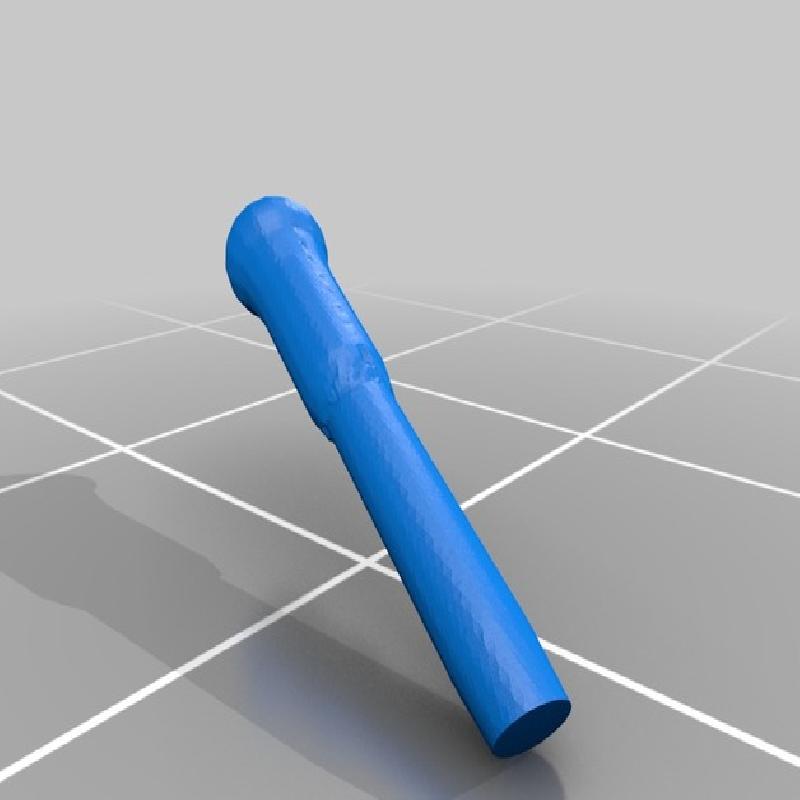

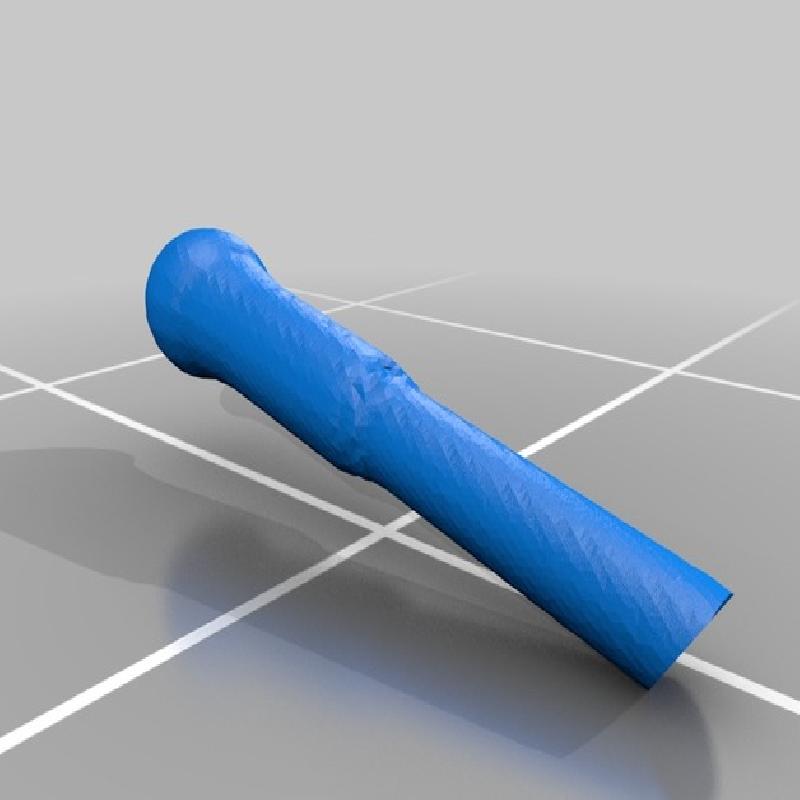

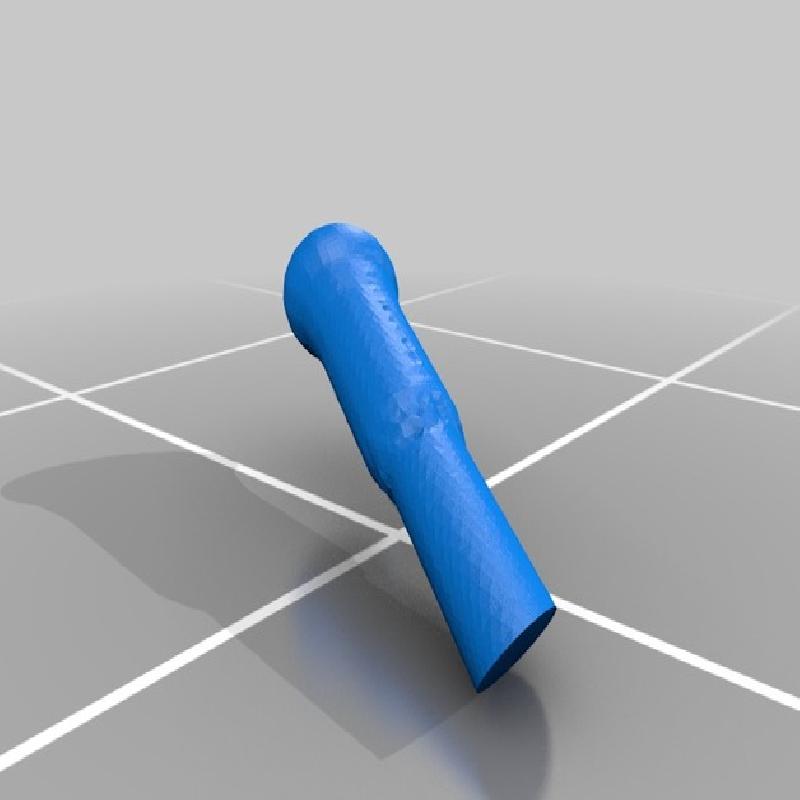

HB_J1 to J4 : insert them in the back of the body (cut them a bit if necessary) from the left to the right

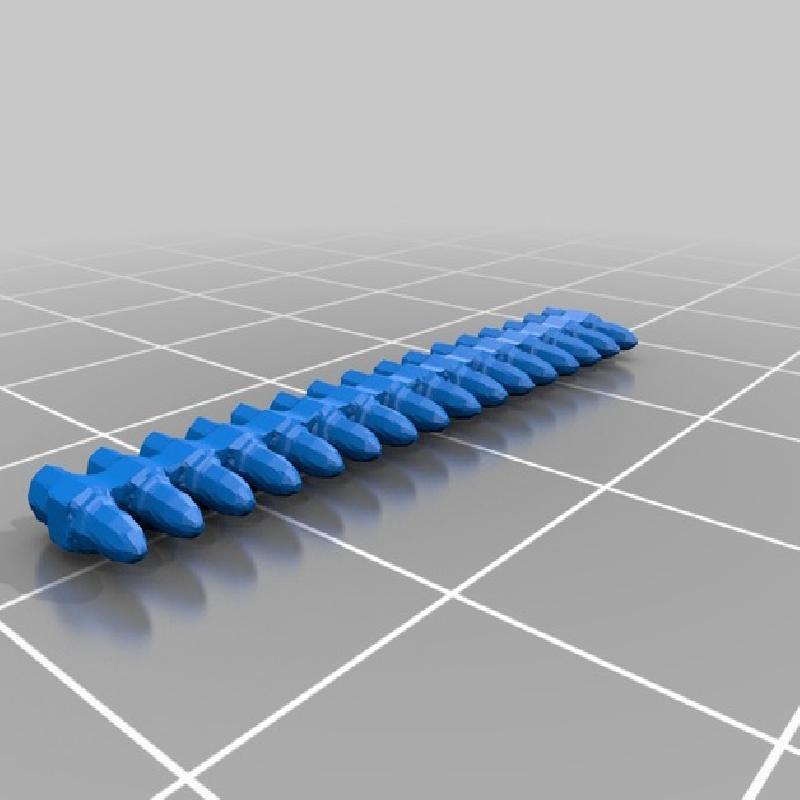

HB_ammo : once printed, heat and bend to your desire
HB_Lbackarmor : print 1 + 1 mirror
HB_Ltorsoarmor : print 1 + 1 mirror

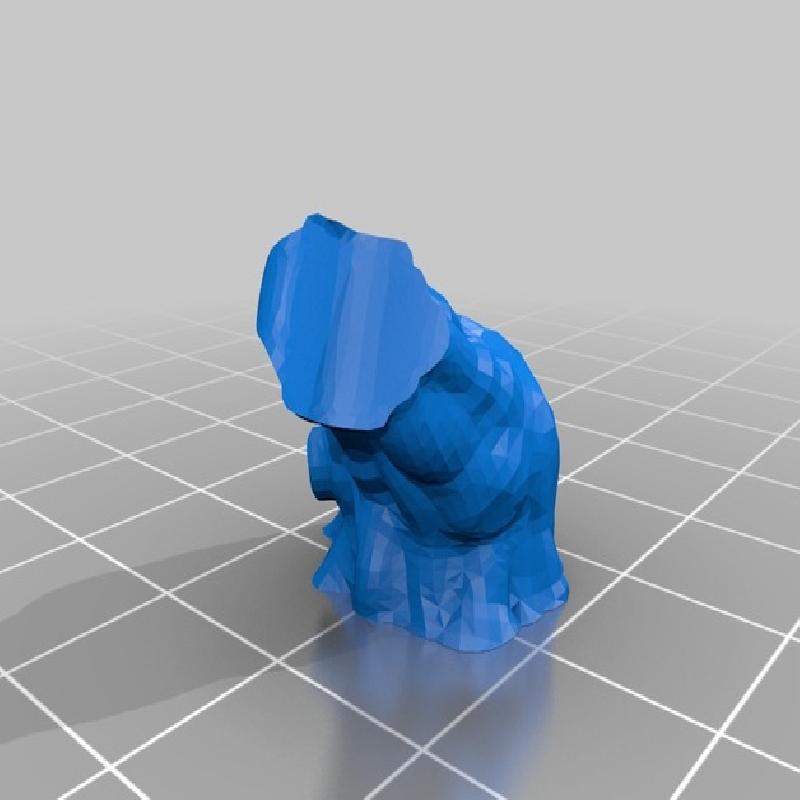

HB_Rarm
HB_Rlegarmor : print 1 + 1mirror
HB_groinarmor

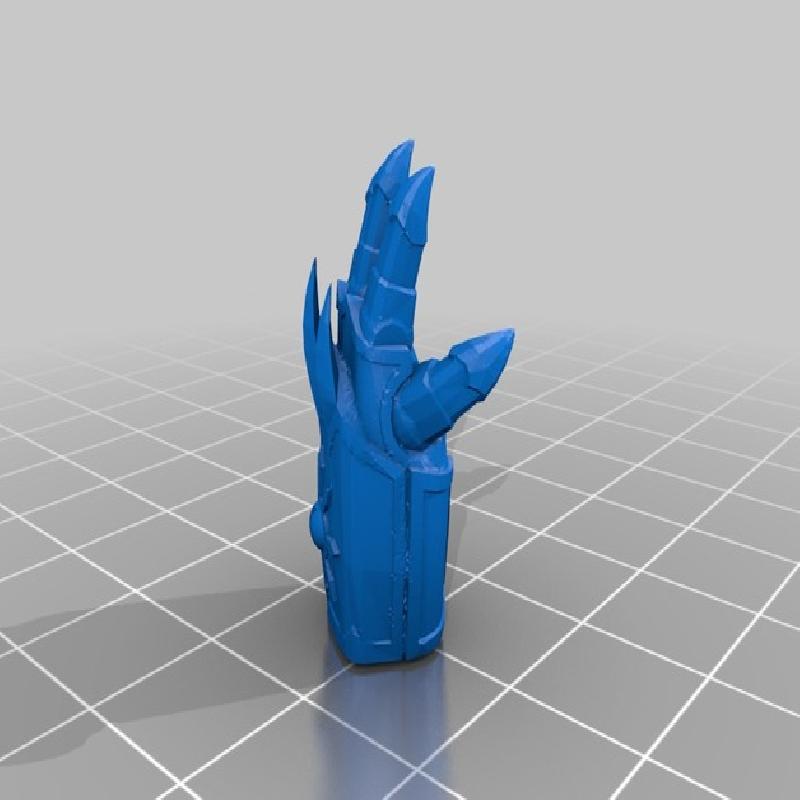

HB_hand
HB_Larm
HB_foot : print x2

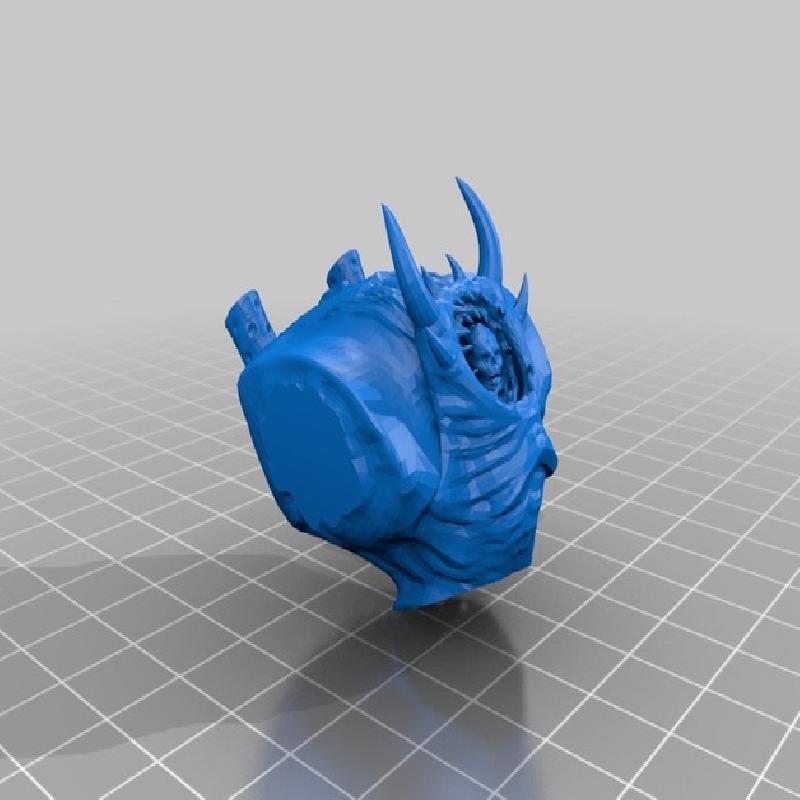

HB_torso

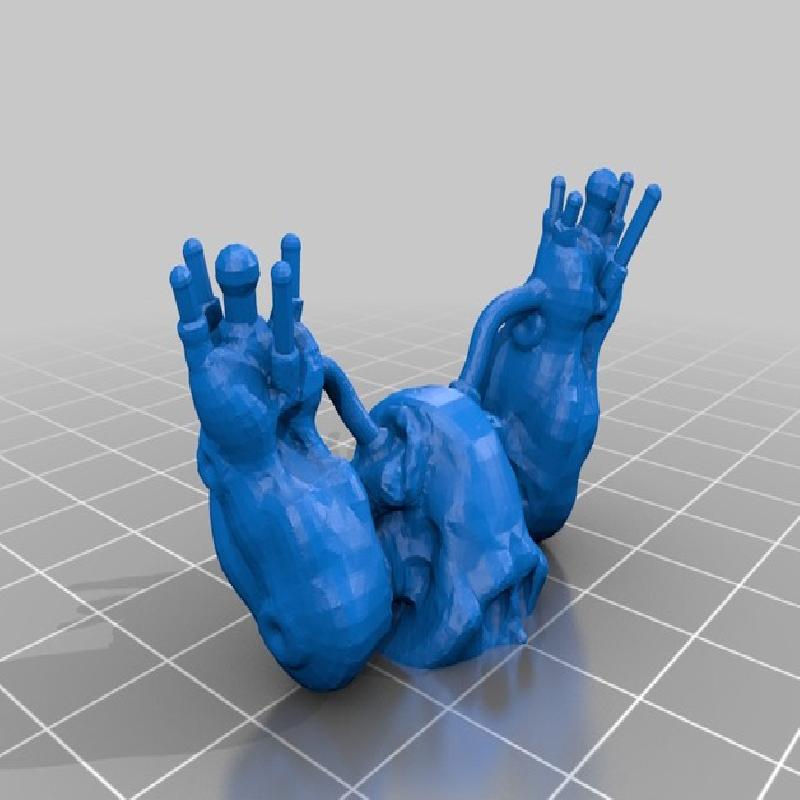

HB_legs

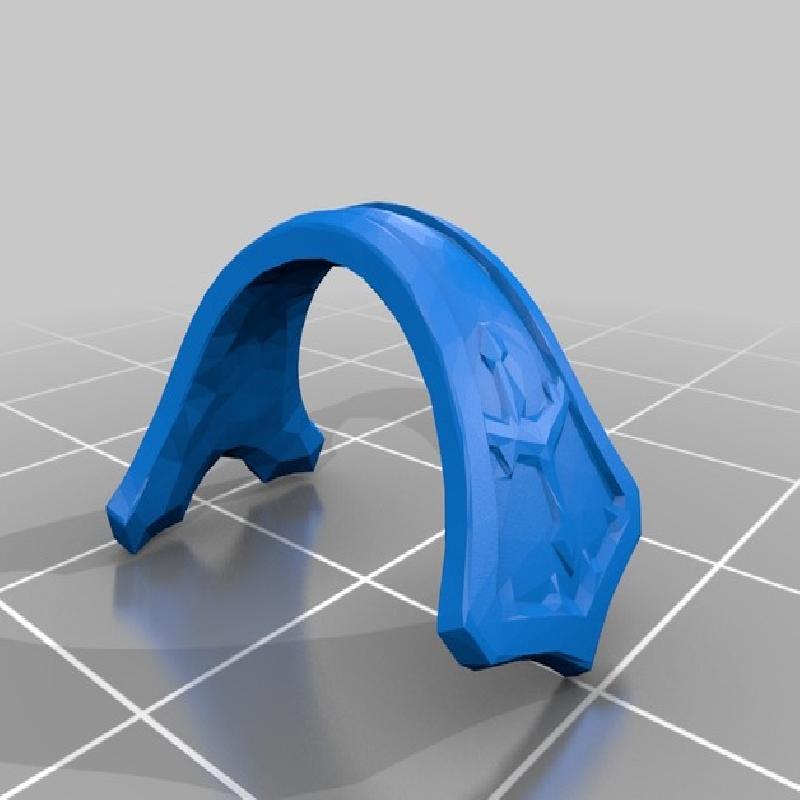

HB_soulder : print x2

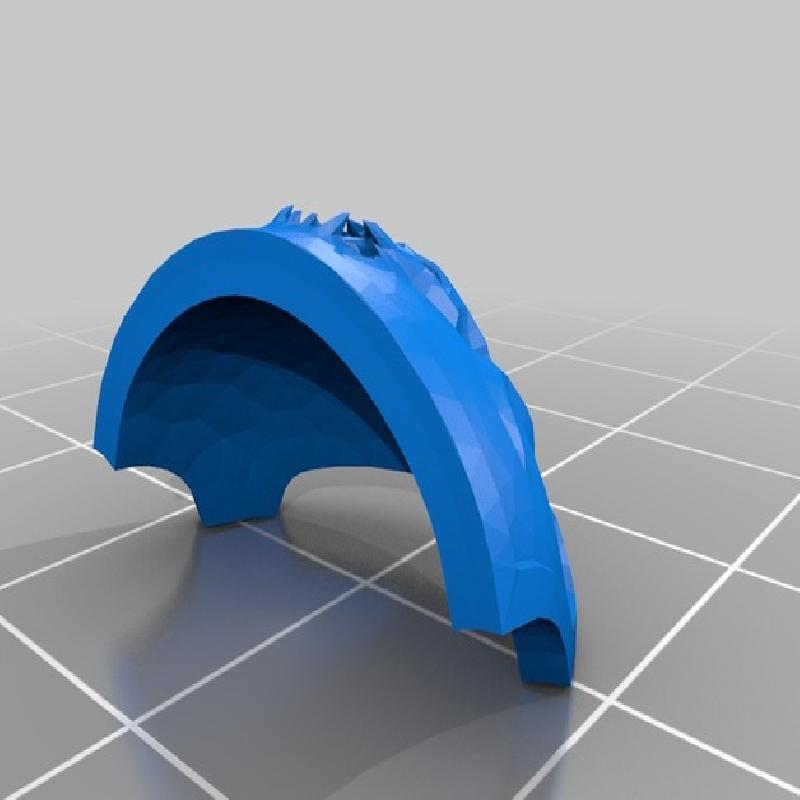

HB_shinguards : print x2

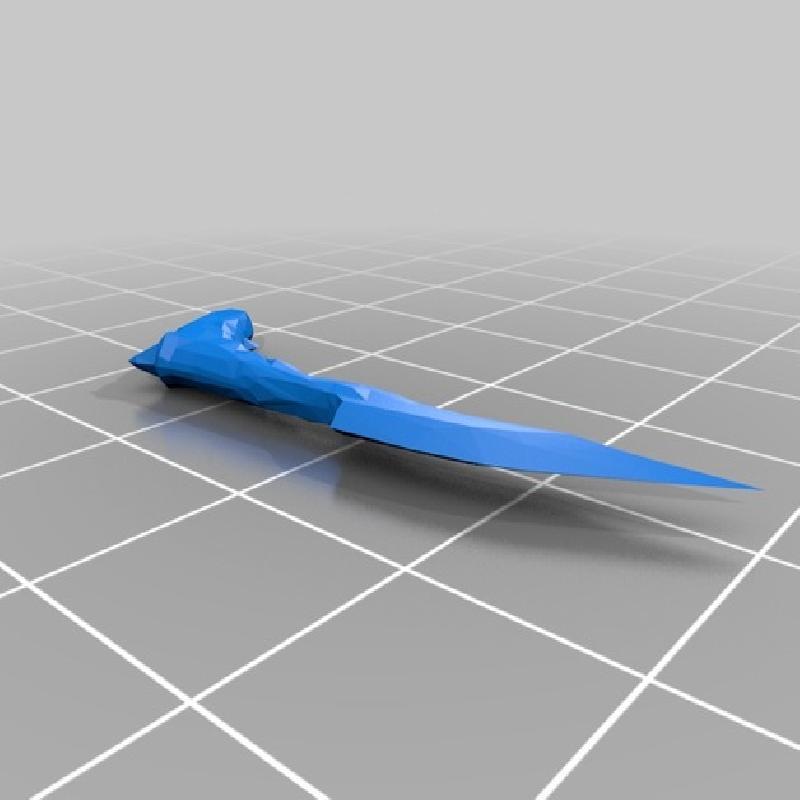

HB_weaponclaw : print 1 + 1 mirror
HB_weaponbody
print orientations should be correct for most printers, use supports on printer bed for most parts.
Assembly with glue :)
Have a nice print and assembly time with this bad guy!
Please share your prints
Note : the version I printed was a bit small, so I upscaled everything to 110%. I also broke the horns :/
Copyright infringement is not intended. All parts are created freehand in 3d modeling software, no copyrighted product had been scanned or copied in any way.
Printer:
prusa i3 custon
Rafts:
No
Supports:
Yes
Resolution:
0.1
Infill:
20%
Notes:
printed in PLA
brim for all parts, supports on printer bed for most
