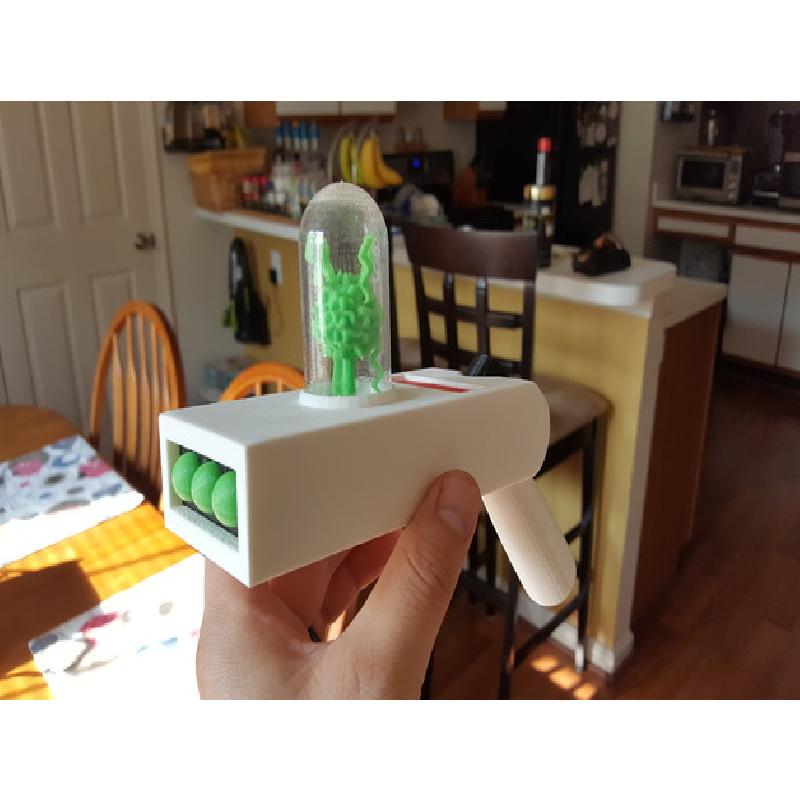

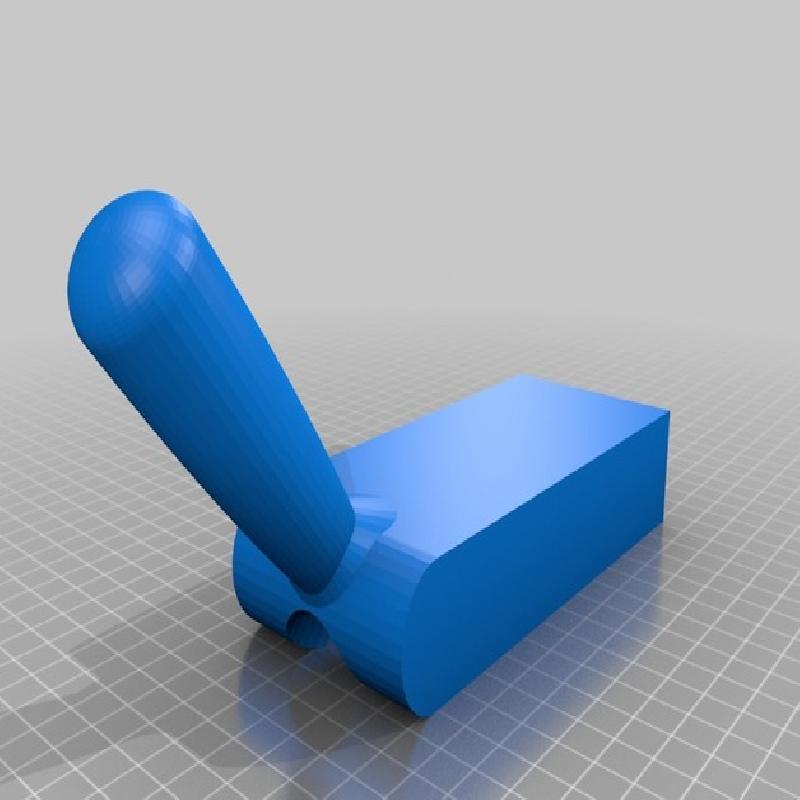

So i took the original portal gun by 3DCentralVA and changed the handle on it. I changed it to match the original from the series. This will print in a single piece upside down. I also made a green energy plasma ball for the center.

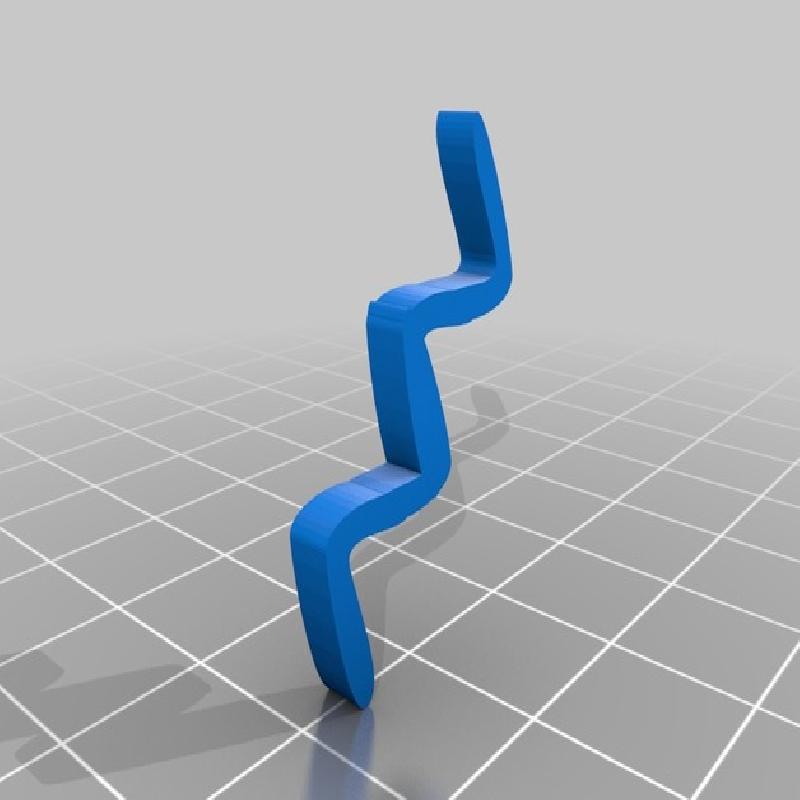

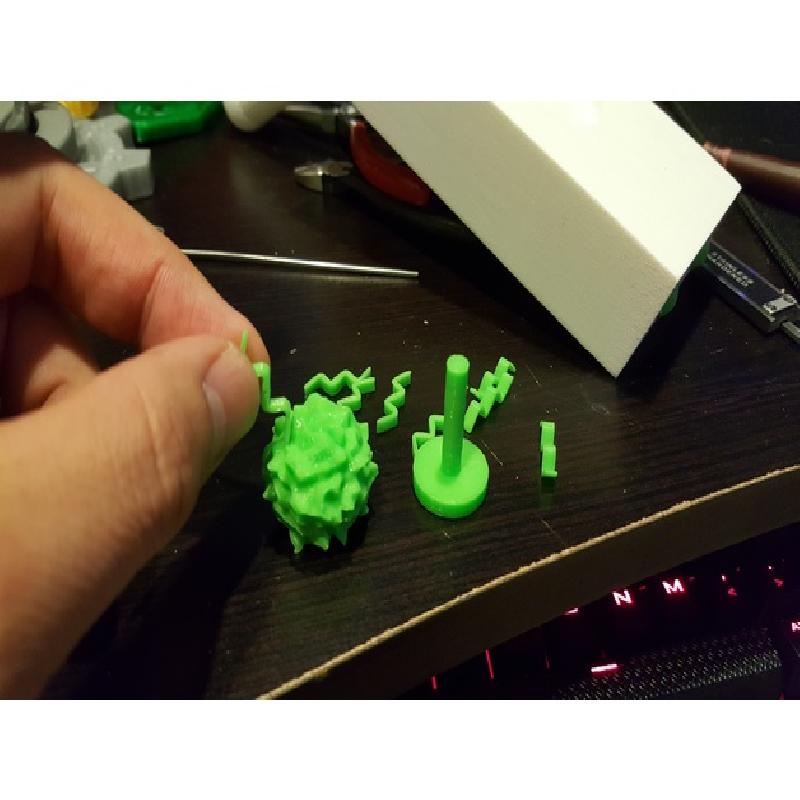

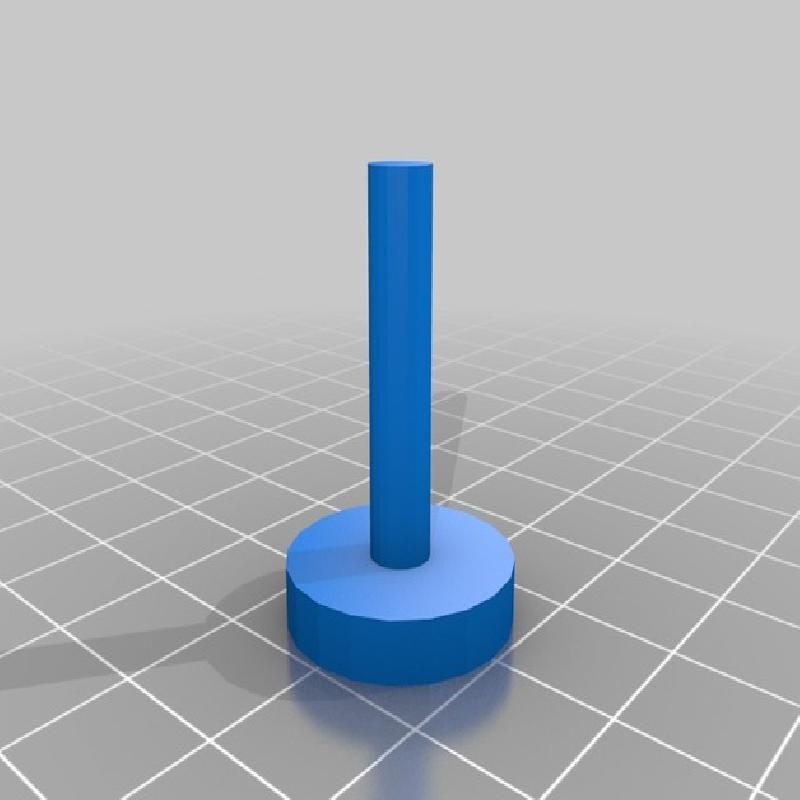

What I didn't do was make the holes for the little energy arms coming out of it. I just drilled small homes and glued them in. You will have to bend them a little to get the bell on.

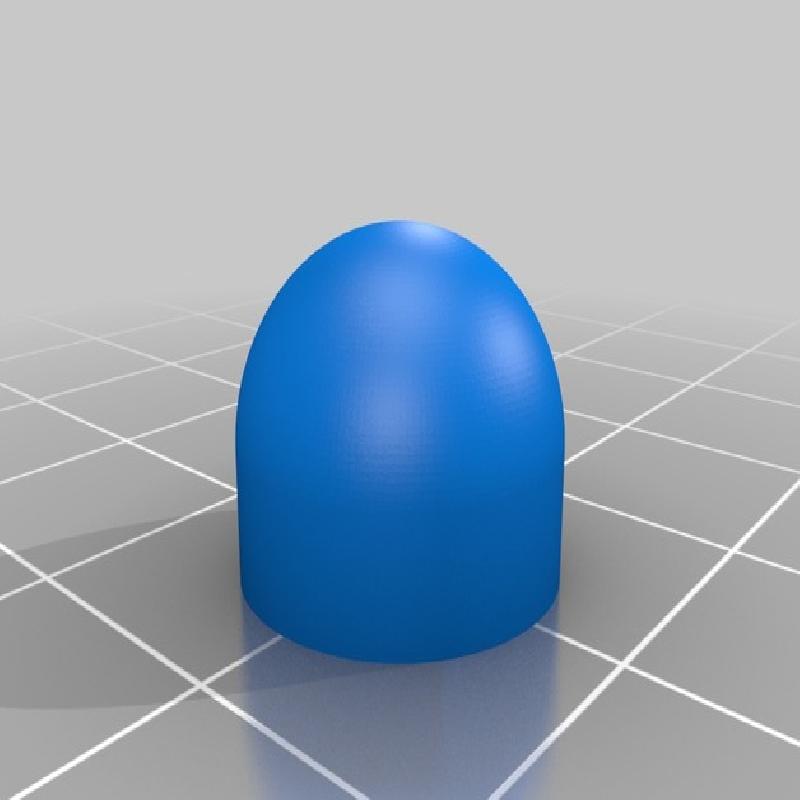

Speaking of the bell I also changed that up. Took me some time but I have the bell printing in a single perimeter and not a duel perimeter. With Simplify3D you can now slice the bell into two FFF files. So what I did was at the very top change the layering to 0.15 so getting tighter layers.

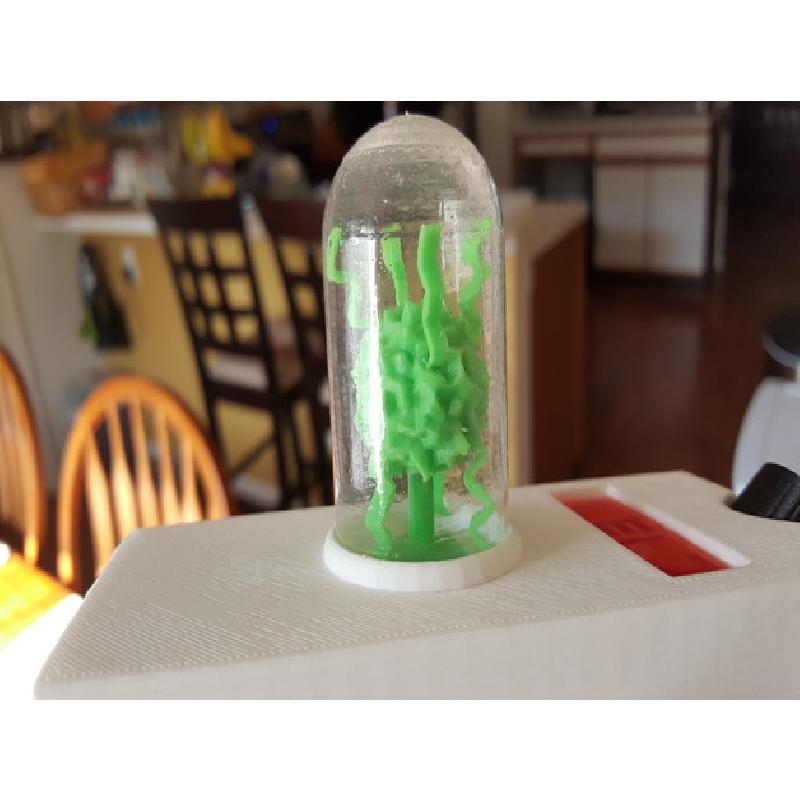

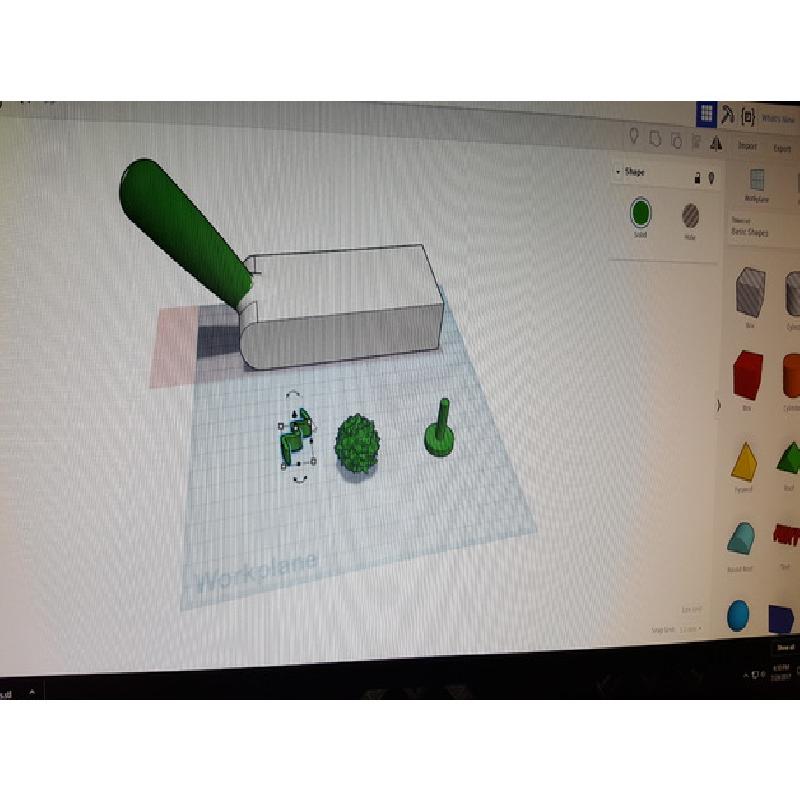

I also used XTC 3D on the clear bell to make it transparent. I made most of these changes in TinkerCad.
Printer Brand:
FlashForge
Printer:
Creator Pro
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2mm
Infill:
20
Notes:
XTC 3D is awesome buy some for the transparent filament it really does work. I only used a single coat on it inside and outside the bell.
If you guys come up with something I can change let me know and I will work on it asap. Thanks to teejaydub on making an awesome design.
