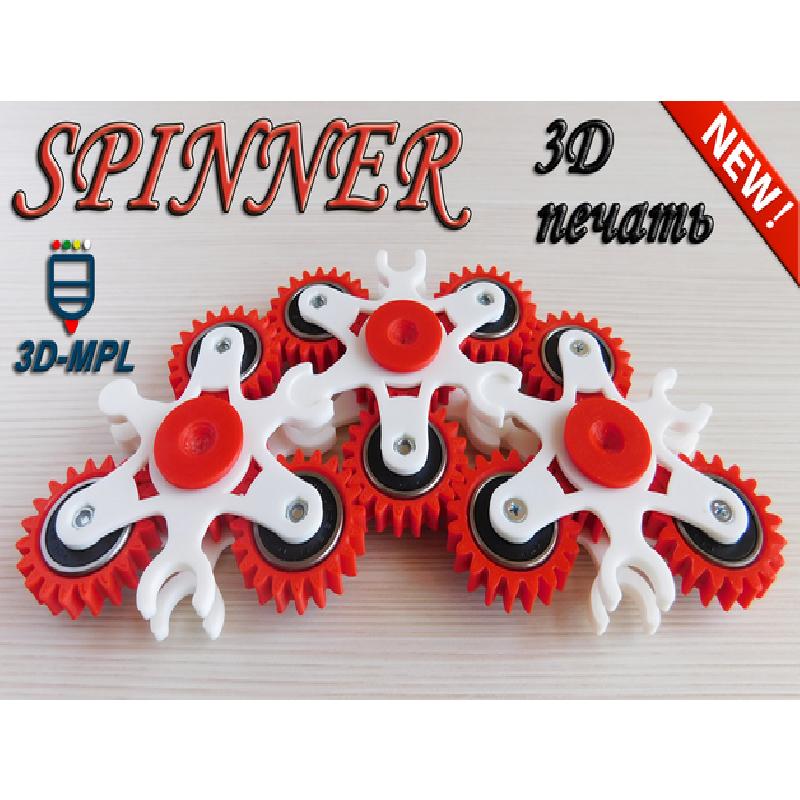

My son asked me to print a spinner on a 3d printer. As always, I was busy, but by the end of the summer I decided to fulfill my son's request. Spinner I developed from scratch - this is a unique spinner that has no analogues. It can connect to other similar spinners using a special connector and transfer energy! Spinner with cogwheels, which are in constant engagement and can rotate all together, and you can twist for any wheel ...
You can download a 3d model of the spinner and print on your 3d-printer or order spinner me (e-mail for bookings: swlesson@gmail.com).
DOWNLOAD 3D SPINNER MODELS: https://petr-m.com/2017/08/09/spinner-3dprint/

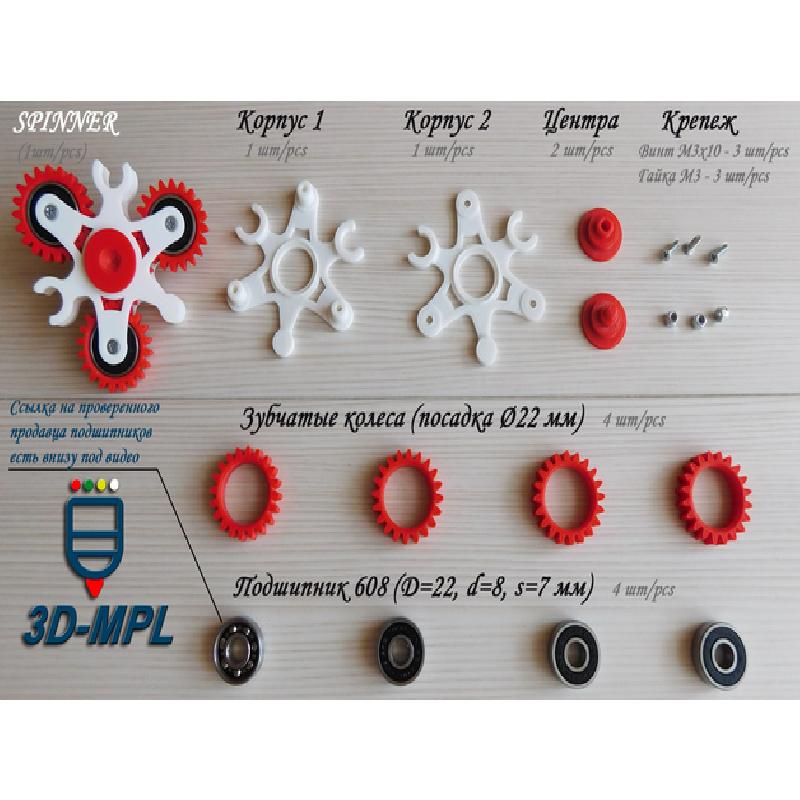

BUY NOT EXPENSIVE Bearings 608 (a reference to a trusted seller): https://alitems.com/g/1e8d114494307feb797b16525dc3e8/?ulp=https%3A%2F%2Fru.aliexpress.com%2Fitem%2F10Pcs-sets-608RS-ABEC- 7-Ball-Bearing-8X22X7mm-Double-Sealed-Counterweight-Bearing-Blue-Yellow-Red-Orange% 2F32818817767.html% 3Fspm% 3Da2g0s.9042311.0.0.wx3LQ3 & subid = 608-podshipnik
==========================================

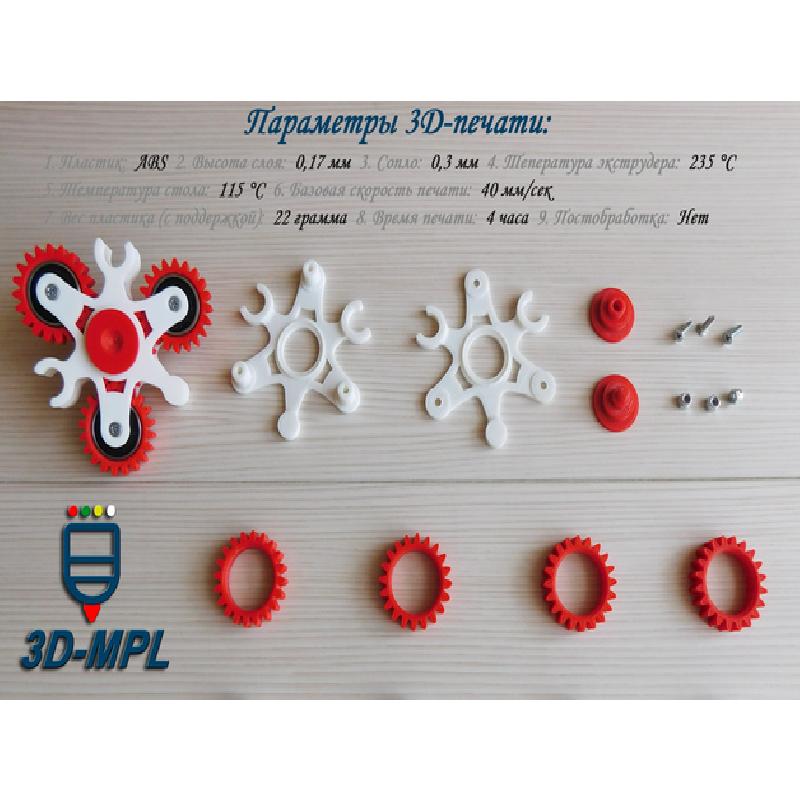

PRINTING PARAMETERS:
Plastic: ABS
Layer Height: 0.17 mm
Nozzle: 0.3 mm
Extruder temperature: 235 ° C
Table temperature: 115 ° С
Basic printing speed: 40 mm / s

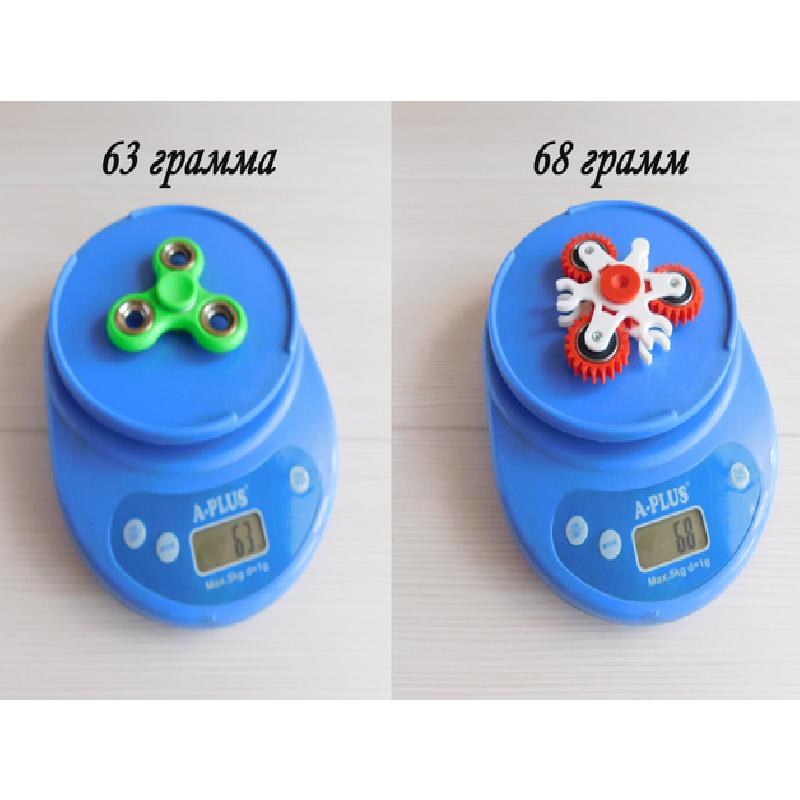

Total weight of plastic (with support): 22 grams
Printing time: 4 hours
Postprocessing: NO
Printer Brand:
FlashForge
Printer:
Dreamer
Rafts:
No
Supports:
Yes
Resolution:
0.17 mm
Infill:
70%
Notes:
PRINTING PARAMETERS:
Plastic: ABS
Layer Height: 0.17 mm
Nozzle: 0.3 mm
Extruder temperature: 235 ° C
Table temperature: 115 ° С
Basic printing speed: 40 mm / s
Total weight of plastic (with support): 22 grams
Printing time: 4 hours
Postprocessing: NO
