PLEASE READ >>>>>>>>>THIS IS STRICTLY A MODEL>>>>>>>IF YOU CHOOSE TO WEAR THIS, IT WILL BE AT YOUR OWN RISK!!!!!!!!!!!
An Eye Piece Inspired by the Movie Suicide Squad
I was impressed with some of the technology seen in the movie Suicide Squad
Based strictly off drawing and images on the Internet, I have made one of these for myself.
Print at .15 or finer.
25 - 50 Percent Infill
Speed (SLOW) 25 to 30

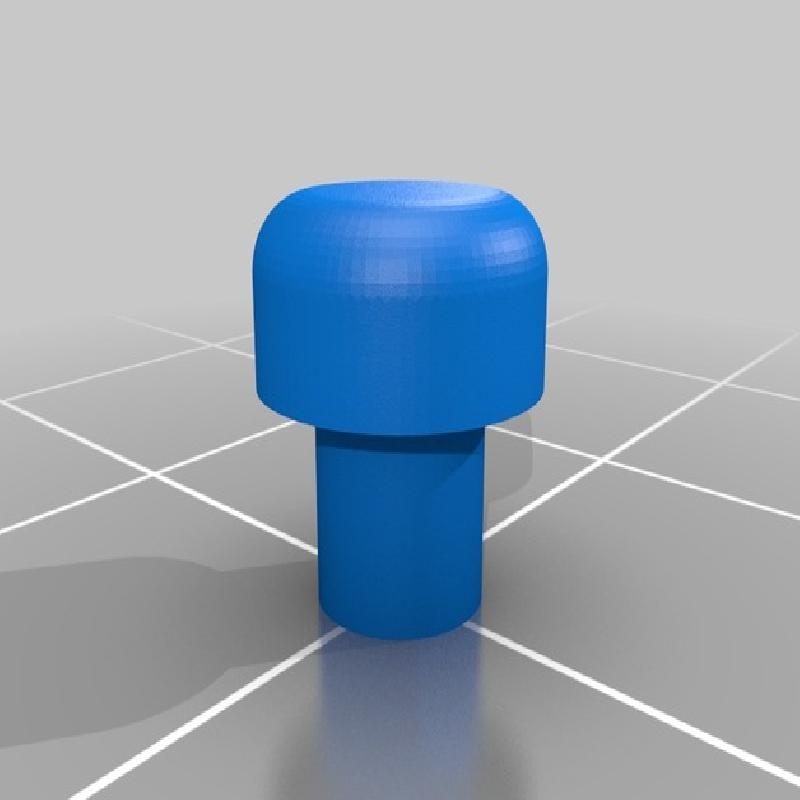

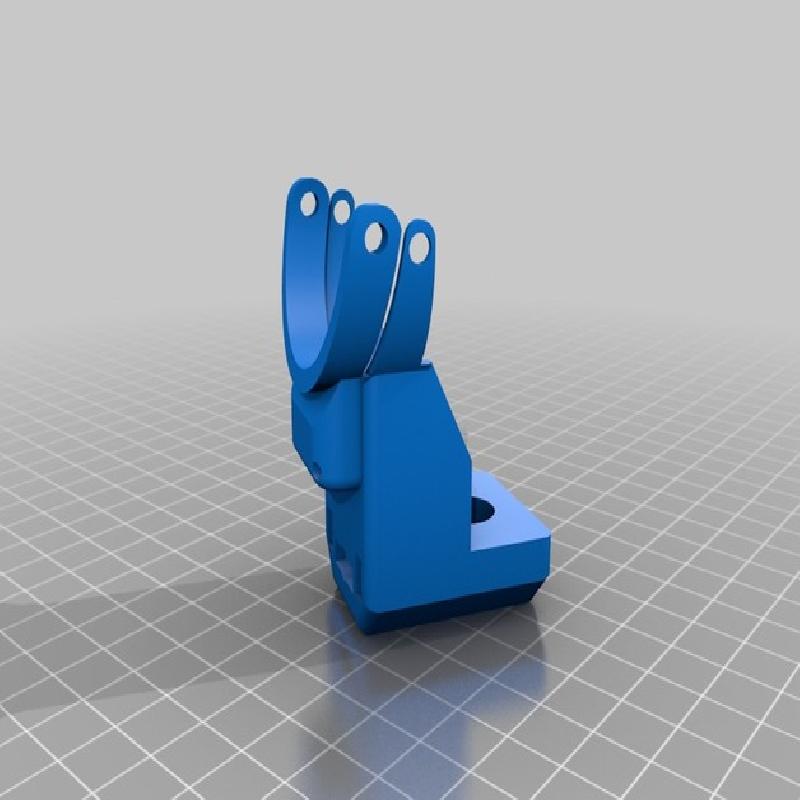

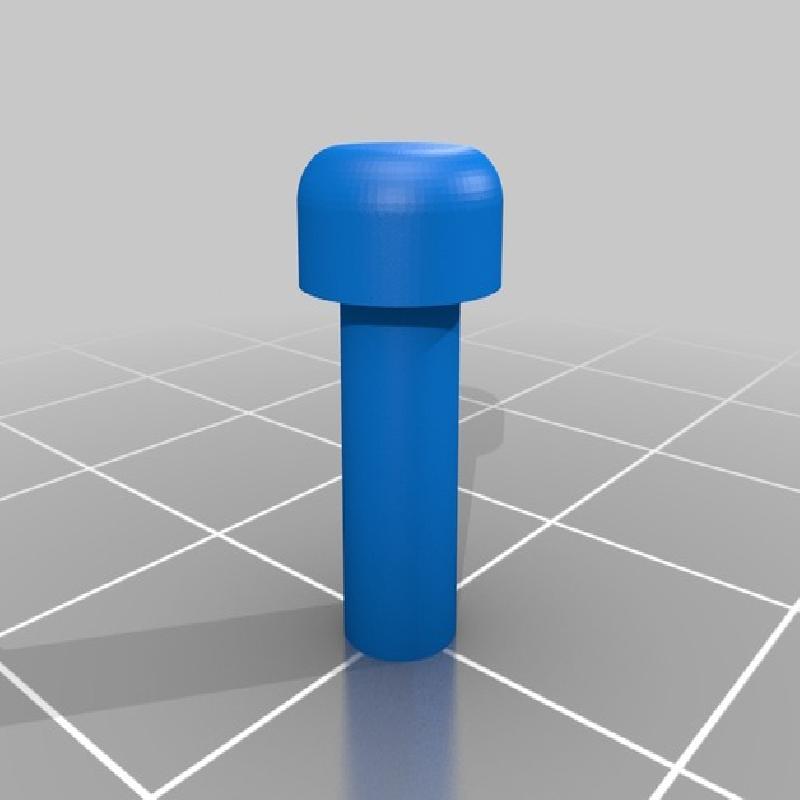

Print 2 sets of the The Eye Assembly Pins. Glue the longer pins into the Mechanical assembly with pin towards the inside of the eye piece. The shorter pins are to be glued too, but are not functional.
Some of the pieces are rather small, so take your time.

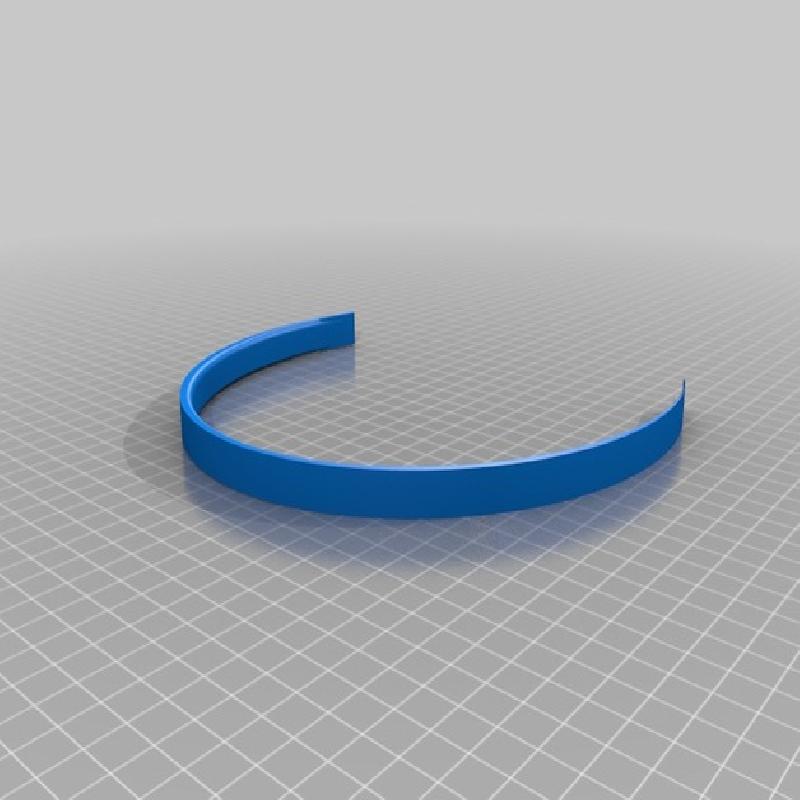

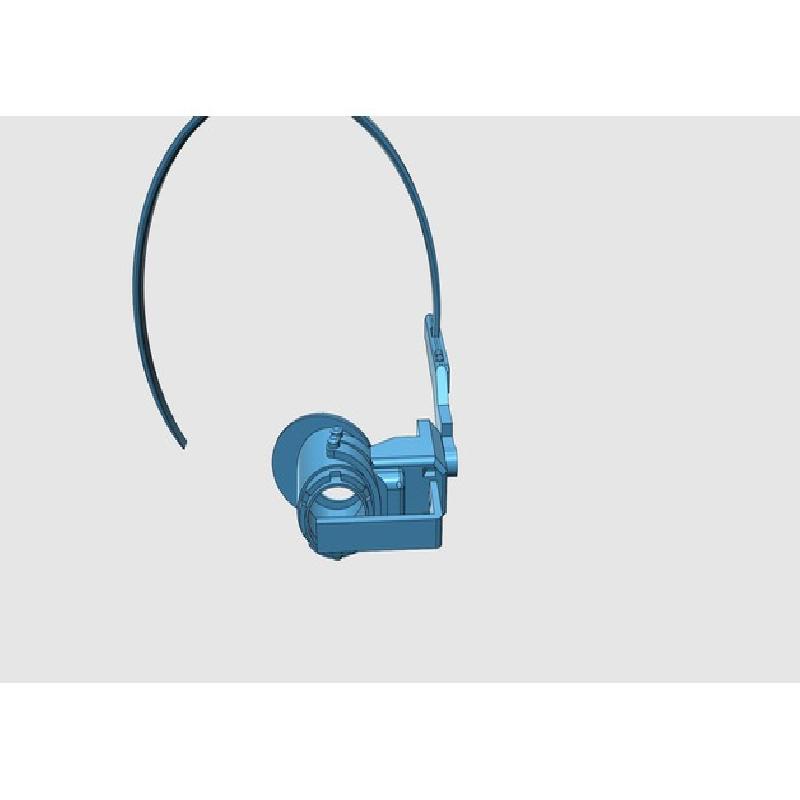

The piece was designed so that head band can be worn around the top of the head or the back of the head.
Please READ!!!!
The head band was made for me, so you may need to adjust yours to fit you.
Measure it before printing. Ues ABS on Head Band for flexibility

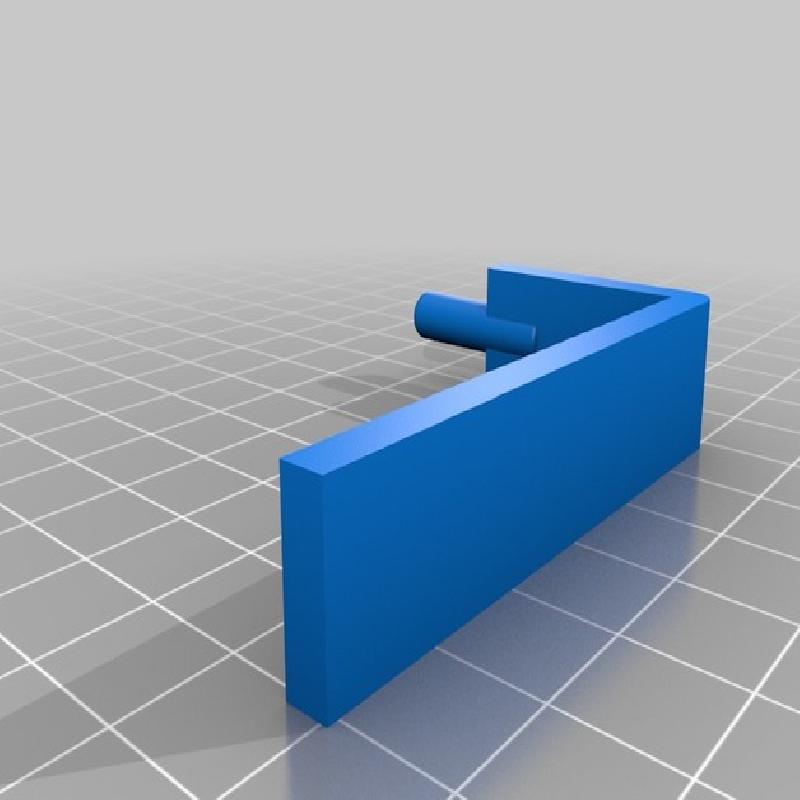

The Focus Blade, needs to be printed with as clear of material as possible. Or like I did, print, and swivel it down. This is the reason for the pin on it.

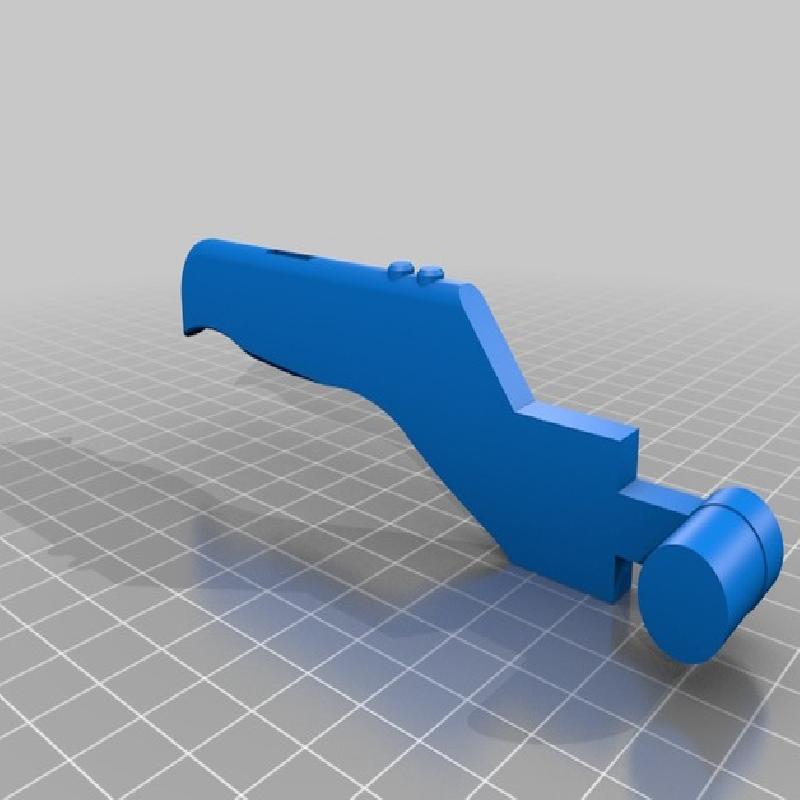

The Ear Assembly also pivots to allow you to set the lense to a comfortable position before gluing.
Please contact me if there needs to be corrections made.
This is as with many of the items posted ....A work In Progress
Printer Brand:
Prusa
Printer:
Prusa Clone
Rafts:
No
Supports:
Yes
Resolution:
.15 or finer if you have time
Infill:
25% to 50%
Notes:
Print Slow!!!!!!!!!!
Ues ABS on Head Band for flexibility
