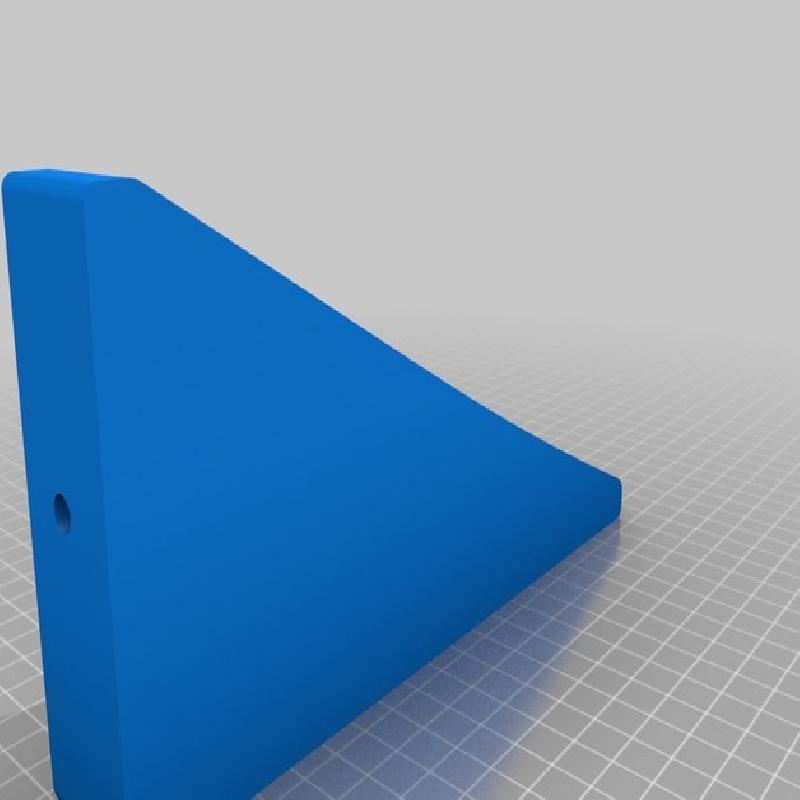

A strong shelf bracket that can withstand a lot of load/impact : 20cm length, holds items up to 25cm. To be mounted with only one lead screw 10mm Head/6mm DIA and 4 top Screws 7mm Head ,4mm DIA
Mirror in your slicing tool for 2nd side, notice printing information.
Printer Brand:
Prusa
Printer:
i3 MK2S
Rafts:
Yes
Supports:
No
Resolution:
.2
Infill:
25%
Notes:
Printing information:
Verbatim ABS White 110*C Bed, 230*C Extruder, Enclosed chamber, At best be printed on long edge with 4 holes on the bottom. Use 10 skirt/brim outlines (1 layer, 0mm distance to model). Print time about 5 hours. Scaled to 100.60% in S3D because of ABS Shrinkage, Horizontal Size compensation -0,12mm. 2 Outlines, 3 Top/Bottom layer shells, 60mm/sec.
Infos:

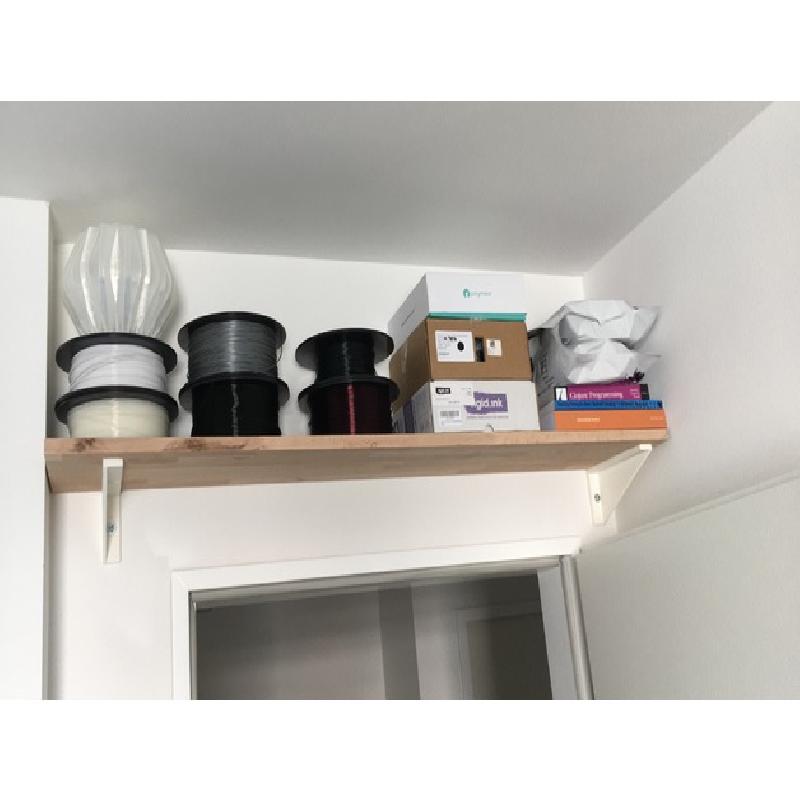

Can withstand a lot of load/impact
20cm length, holds items up to 25cm
Only one lead screw 10mm Head/6mm DIA
4 top Screws 7mm Head ,4mm DIA
