Remix of http://www.semaker.com/productdetail/981 with the following changes:

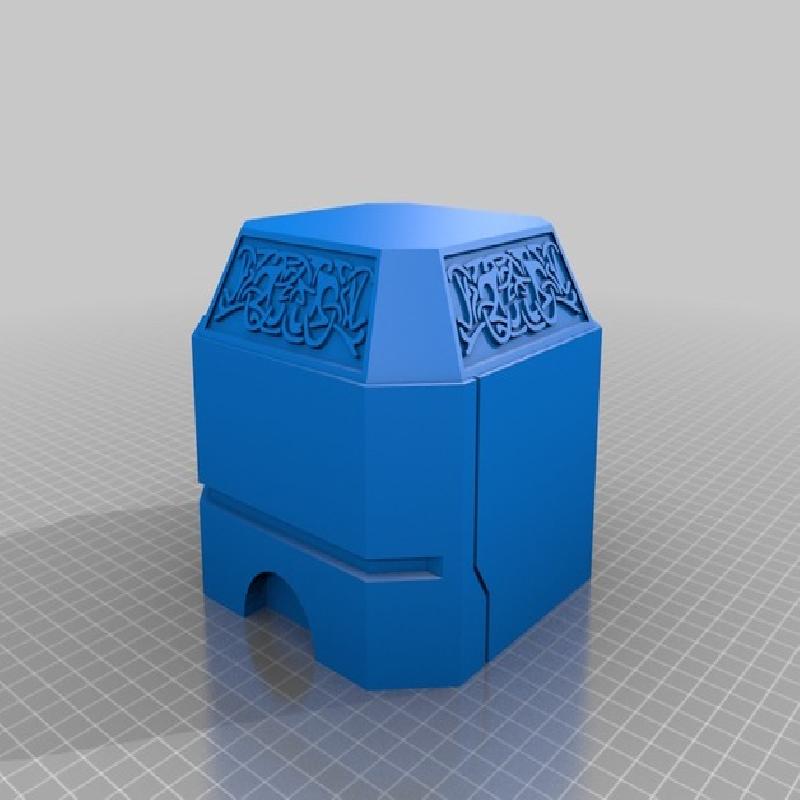

Runes on hammerhead in the original model were not correctly aligned to their corresponding backplate on 3 of the 4 sides, the sides towards the middle of the hammer were not connected to the backplate

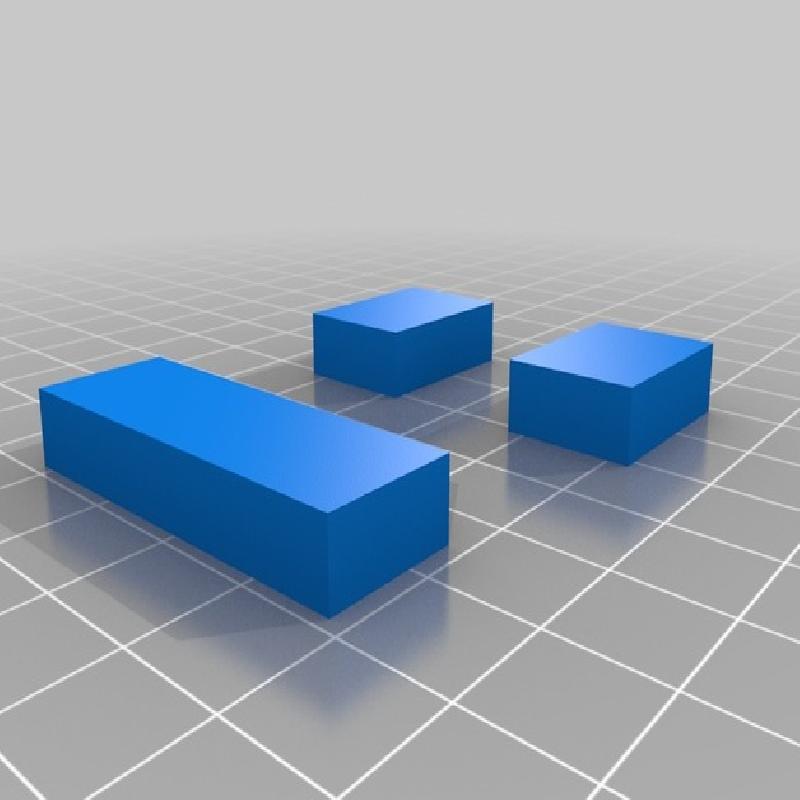

Connectors and connector holes changed to tight fit. If your printer does decent prints the parts are aligned to correct position

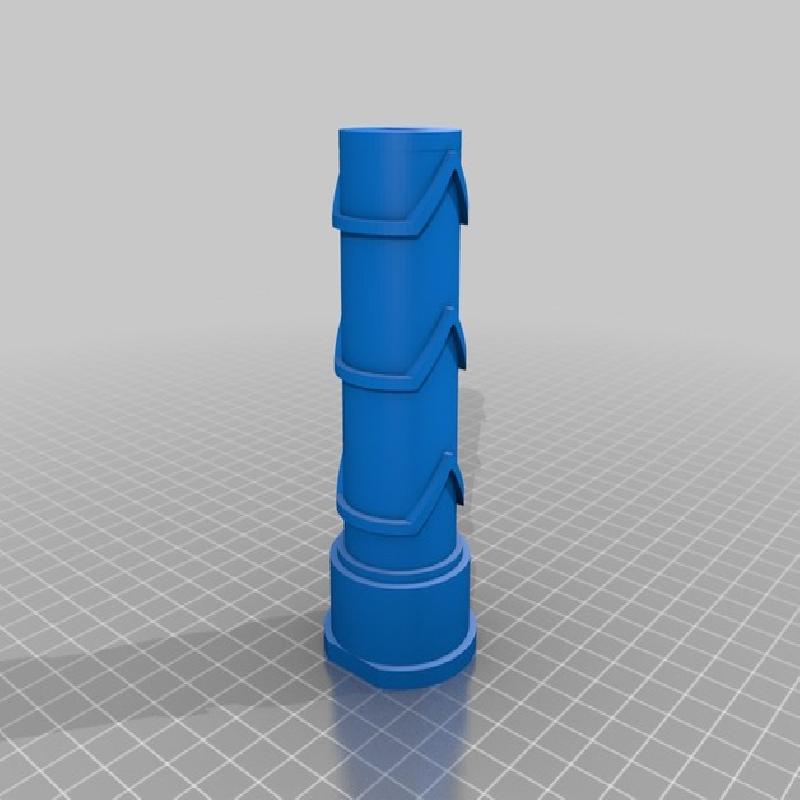

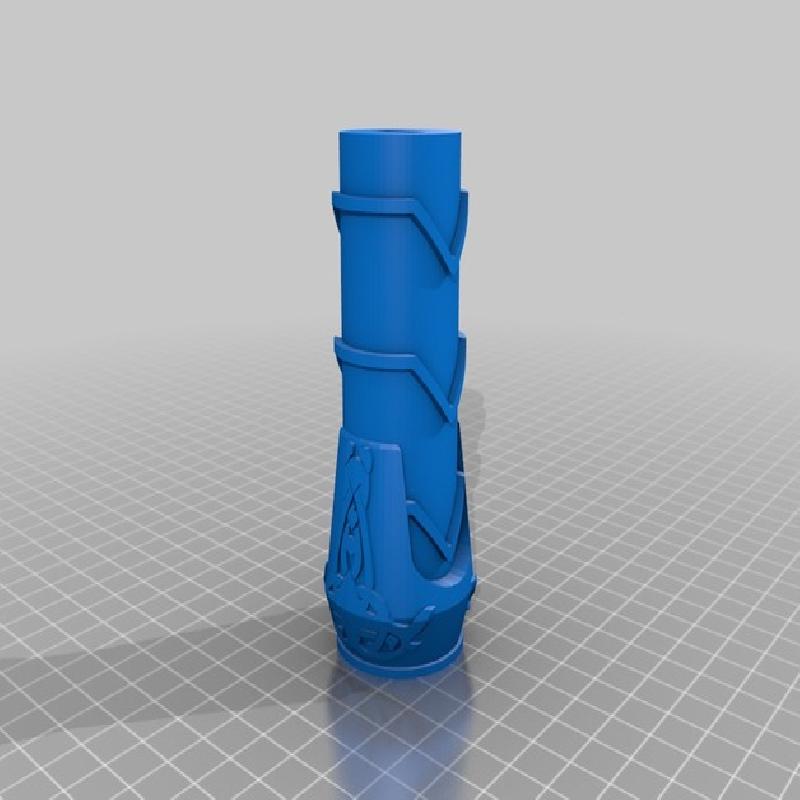

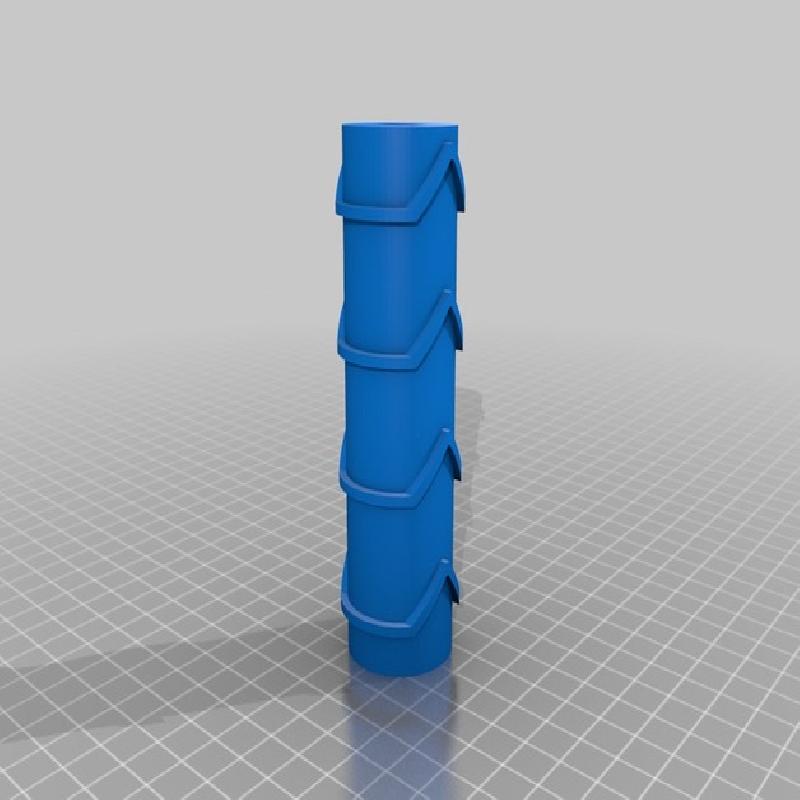

All cylindar and conical parts in the handle (and the cylinder on top of the hammer head) are tinkered in Tinkercad to have max amount of sides, this will allow post-processing to start with sanding paper with grit 400 and 600 so no need for coarser ones
I strongly recommend printing the hammer head with skirt, I didn't and needed some Tamya putty as some of the corners bent up from the print bed during printing
Printer:
Original Prusa i3 MK2S
Rafts:
No
Supports:
Yes
Resolution:
0.15
Infill:
20%
See original model description...
Connect parts
Glue together
Putty where needed
Instead of primer paint I used XTC-3D to get smooth surface
Acrylic paints
Matte lacquer
